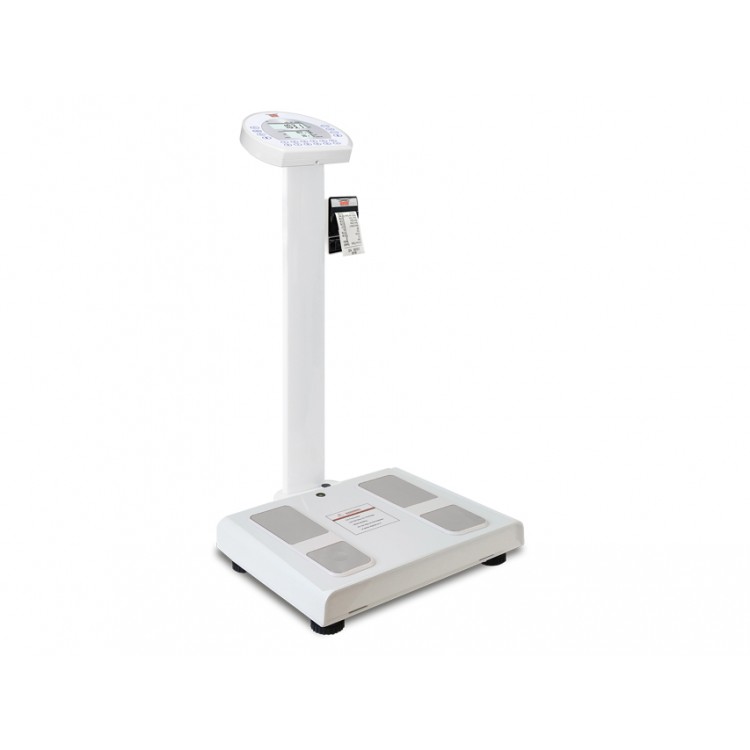

Electronic Scale Body Composition Analyser And Printer .

The ultimate body composition analyser

Professional electronic scale with BIA body composition analyser.

Simple, fast, and non-invasive examination of BMI, fat, muscle, and water components.

Who can use it

Healthy individuals without any internal electronic medical implants can use the WUNDER WBA300 for body composition analysis.

The device is designed to be user-friendly, with intuitive screens and easily accessible functions.

The data can be archived and analyzed using the accompanying w-Med software, which also allows for patient data history and comparison.

Please note

Individuals with specific health concerns or conditions should consult with their doctor before using the device.

Should not be used by

People with pacemakers or other internal electronic medical devices:

Important considerations:

The device's electrical output is very low and is not likely to cause interference with other electronic equipment.

Key Features

• Analysis of nutritional solutions advised by professionals
• Complete check-up in 20 sec. with a single weight reading
• Easy interpretation of results gives a complete picture
• Large painted aluminium base with 4 stainless steel tactile electrodes.
• ABS indicator with LCD display set on a column in painted aluminium.
• Supplied with power adaptor, RS232 interface, level, 4x large anti-slip adjustable feet, 2 integrated wheels for easy transport, thermal printer with its power cable, connector, and 1 paper roll (57 x Ø 30 mm).
• Multilingual manual: GB, IT, ES.
• Functions: weight, tare, mother/child weight, hold, BMI, autozero, programmable auto-off.

Technical Specifications

• Printer Data: Date, Time, Body Type, Sex, Age, Height, Weight, Clothes Weight, BMI,
• BMR, Fat (kg -%), FFM, Muscle Mass, Protein Mass, Skeletal Muscle, Bone Mineral Content, TBW, Intra-extracellular water.
• LCD Display with 5 digits 20mm (Weight), Multi-line LCD
• Display 3 digits 12mm (BMI / Age-Fat),
• Keyboard with 20 keys
• Class III
• Frequencies: 4 bipolar mono-frequency 50 kHz electrodes
• Impedance frequency: 50kHz 500uA
• Range: 200 ~ 1000O / 0.1O
• Capacity: 300 kg
• Sensitivity: 100g/0.1%
• Age Range: 10 ~ 80 years, increase of 1 year
• Size: 450x550xh 880 mm
• Platform size: 450x340xh 85 mm
• Column size: 100x50xh 750 mm
• Weight: 11 kg
• Power supply: adapter AC 12V 2A and 7.2V 2000mA recharg. battery
